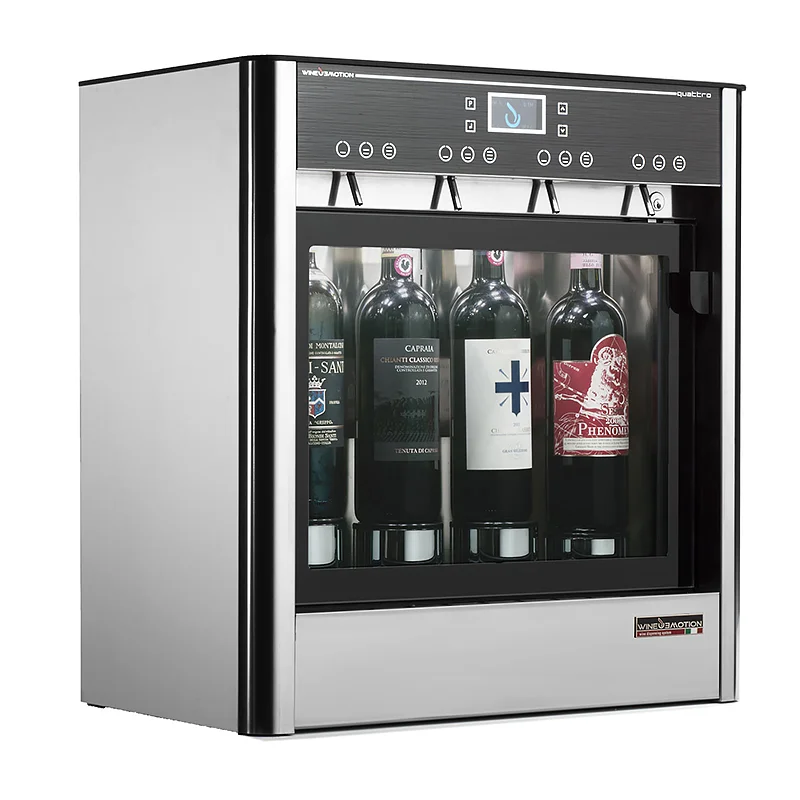

Refrigerated model shown


The stylish 4 bottle QUATTRO models from our Series 2 range are perfect as an entry level commercial behind the bar system or for serious wine enthusiasts to use at home.  Available in room temperature, single temperature or dual temperature zone formats to preserve and serve at the ideal temperature without spoilage and over-pouring.


  • 4 bottle positions
  • Model options:
    • Room Temperature - for 4 red wines (suitable in cooler climates)
    • Single Temperature - refrigerated for 4 white or 4 red wines (6oC to 18oC)
    • Dual Temperature - refrigerated for 2 white wines (6oC to 14oC) and passive cooling for 2 red wines (approx. 12oC to 18oC depending on white wine temperature)
  • 3 volume buttons with adjustable pours, commonly set to a taste, half and full glass
  • ISOL-Plus patented serving tap technology for up to 30 day presevation with Argon gas
  • Capacitive touch button operations
  • Digital main display with security code activation feature to enable/disable wine service
  • Double glazed swing-open glass door with key lock (except Room Temperature model)
  • Manual spring pistons for bottle lifting
  • LED lighting to highlight the wine bottle labels
  • 2 years manufacturers parts / 1 year labour warranty


Width: 550mm
Height: 565mm
Depth: 320mm


30kg - Room Temperature model
45kg - Single or Dual Temperature models


220-240V / 50-60Hz / 50W - Room Temperature model
220-240V / 50-60Hz / 130W - Single or Dual Temperature models
